Automatic two-sided output
Add supporting information to the reverse without hand-flipping.

Check the full product specification before ordering.
SKU: ACB-SMART31D
Choose an option to see stock
Automatic dual-sided CR80 card printing with an 80-card input hopper. Choose Base Model, Ethernet Connectivity or Magnetic Encoder; these are separate printer configurations.
IDP SMART 31 · Original manufacturer PDF.
Check the selected configuration and bundle contents against this product listing.
Add supporting information to the reverse without hand-flipping.
Up to 80 cards in the input hopper.
Match the selected connection and encoder to your system.

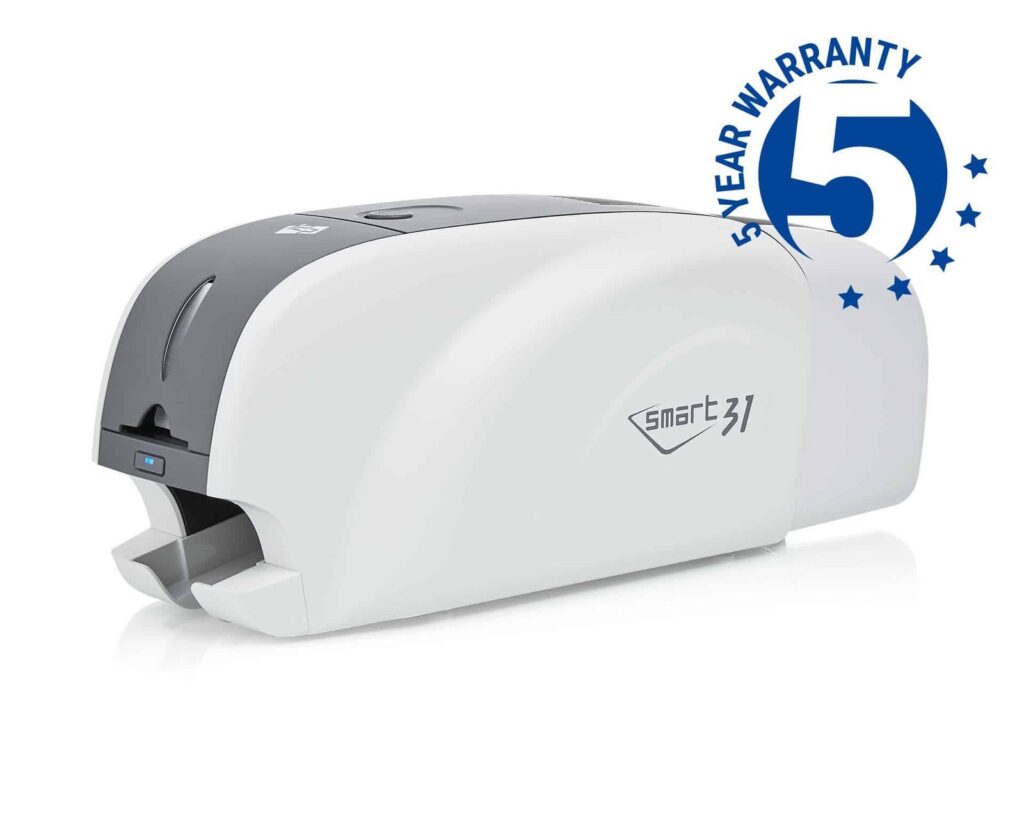

The IDP Smart 31 dual-sided ID card printer (SMART-31D) provides automatic printing on both faces of staff, student, visitor and membership cards. Use the front for a photo and identification, and the reverse for supporting information, barcodes or terms. Its automatic input hopper holds up to 80 cards.
IDP rates its YMCKOK duplex mode at 138 cards per hour (26 seconds per card). Monochrome is rated at 720 cards per hour. Actual job speed depends on the ribbon, print mode, encoding, design and card handling. Colour resolution is 300 dpi; 600 and 1200 dpi settings are monochrome-only modes.
Use Printer Options to choose Base Model, Ethernet Connectivity or Magnetic Encoder. These are separate complete printer configurations. Ask ACB to check any combined network-and-encoder requirement and match the encoder, software and card technology before ordering.
The standard format is CR80, with 0.38–0.76 mm supported in the manufacturer's model specifications. Use suitable printable stock and check current drivers, software compatibility and the applicable UK warranty. Compare the matching single-sided SMART-31 listing, or read IDP's SMART-31D specifications.

For a colour front with a black reverse, consider the IDP 659376 YMCKOK ribbon, rated for 200 prints in its intended mode. Its extra black panel supports reverse-side text and graphics. Confirm the driver mode when planning colour on both faces, because ribbon use per completed card changes with the layout.
Choose printable blank white PVC cards within the supported thickness range and add IDP 659909 long cleaning cards for maintenance. The compatible black monochrome ribbon is another option for single-colour designs.
Use the reverse for return instructions, terms, contact information or a barcode, keeping the photograph and key identification prominent on the front. Automatic duplex printing completes both faces within the same job and reduces the need to handle and turn each card manually.
IDP specifies 138 cards per hour for the YMCKOK duplex mode. Single-sided colour ratings describe a different job. Allow time for data preparation, artwork processing, encoding if fitted and collecting cards when estimating your finished batch.
The selectable options identify separate configurations. Check the exact combination if you need network printing and encoding together. A contactless/MIFARE option must support your particular card type, software and access-control system.
Yes, you can plan the printer and supplies separately. Confirm the software licence and included items with ACB. You can also compare the Smart 31 dual-sided bundle, reviewing its listed contents against what you already own.
The Smart 51 dual-sided printer offers a metal-frame platform, a larger input capacity and a higher published YMCKOK duplex rate. Compare those features with your normal issuing workload. For front-only designs, see the single-sided Smart 31.
| Model | IDP SMART-31D |
|---|---|
| Print mode | Dual-sided, direct-to-card |
| Colour resolution | 300 dpi |
| Higher-resolution modes | 600 / 1200 dpi monochrome only |
| Card format / thickness | CR80, 0.38–0.76 mm |
| Input capacity | Up to 80 cards |
| Rated colour mode | YMCKOK duplex: 138 cards/hour |
| Rated mono mode | 720 cards/hour |
| Connectivity | USB; Ethernet configuration optional |
| Encoding | Separate Magnetic Encoder configuration; base and Ethernet options exclude an encoder |
| Brand | IDP |
| Product code | ACB-SMART31D |
| Printer Options | Base Model, Ethernet Connectivity, Magnetic Encoder |
Check the complete manufacturer specification, selected options and included items before ordering.
