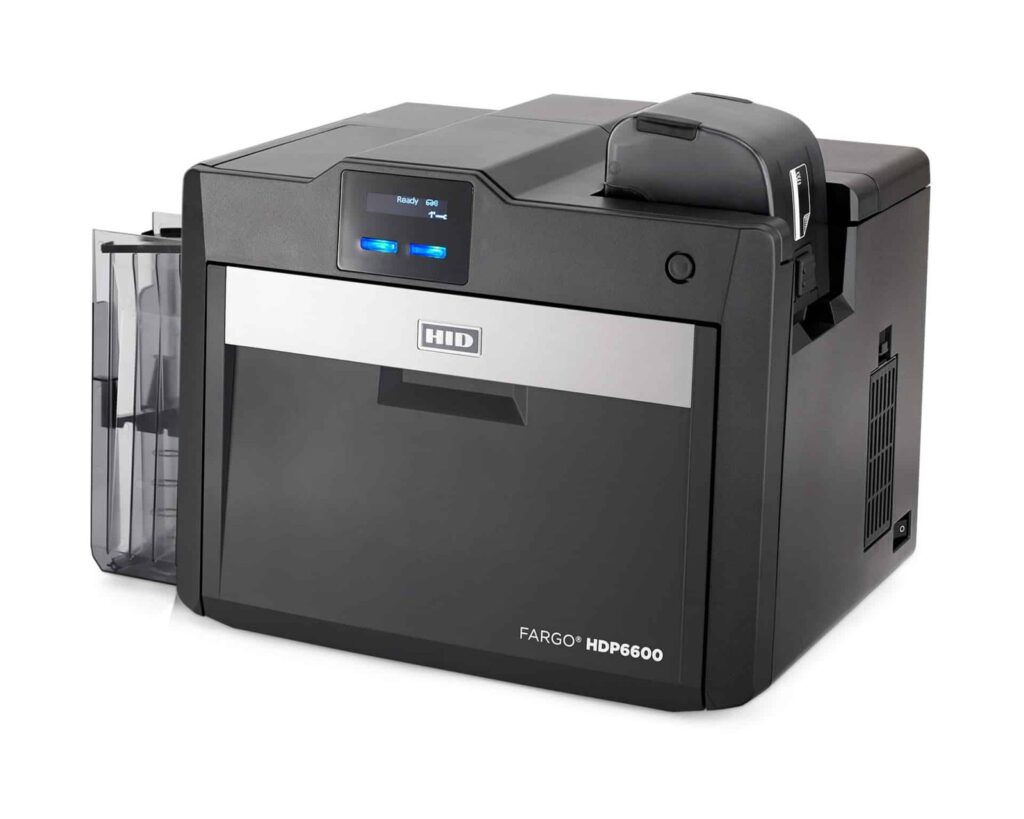

Fargo HDP6600 Retransfer Plastic Card Printer (single-sided)

Fargo HDP6600 single-sided printer with 600 dpi output

The Fargo HDP6600 single-sided printer produces detailed photo ID cards using 600 dpi retransfer printing. It suits front-face designs with photographs, branding and fine text, including approved technology cards. Choose this configuration when the information fits on one face and automatic reverse-side printing is not required.

Fargo HDP6600 single-sided printer: the retransfer process

The printer first builds the image on HDP film, then transfers it onto the card. This separates image formation from the final card surface and supports an over-the-edge finish on suitable stock. Prepare artwork at an appropriate quality: a higher print resolution cannot restore detail missing from a low-resolution source photograph.

For cards needing personalised information on both faces, compare the dual-sided HDP6600. Planning the reverse design now helps you choose the right printer configuration and consumables rather than relying on a manual second pass later.

Match the card material and production volume

HID specifies CR80 cards at 30–40 mil, approximately 0.762–1.01 mm. Approved materials include PVC, composite, PET, PETG and polycarbonate suited to the process. Check the exact card construction and print surface, especially for contactless or other technology cards. Browse our blank plastic card range and confirm suitability before ordering a production quantity.

The standard input hopper holds 100 cards; larger or dual input hopper arrangements are options. HID quotes up to 230 cards per hour in YMCK mode with transfer. Artwork, driver settings, encoding and added processes affect the finished-job rate. Allow time for sample approval, record preparation and supply changes when planning a batch.

Fargo HDP6600 single-sided printer ribbon and film

The HDP6600 requires a compatible print ribbon and a separate HDP transfer film. They perform different jobs and have separate image ratings. Match both to the supplied printer and intended artwork. A ribbon for a direct-to-card Fargo printer is not a substitute, and a film rating does not automatically equal the number of completed cards for every print layout.

Use the Fargo consumables range as a starting point and ask ACB to confirm the exact HDP6600 references. Keep approved cleaning supplies available and follow the manufacturer maintenance instructions. Cleaning kits are model-specific, so avoid choosing one solely because it carries the Fargo name.

Fargo HDP6600 single-sided printer questions

Is a laminator included with retransfer printing?

No. HDP film is part of the retransfer printing process. Optional LMX lamination applies an additional material using a configured lamination module. Specify that requirement separately if your cards need it.

Can it create working access-control cards?

It can print suitable card surfaces. Writing chip or magnetic-stripe data additionally requires a compatible fitted encoder, appropriate software and the correct credential technology. Printing a design onto a contactless card does not activate it in an access system.

What should I check before buying?

Confirm the supplied single-sided configuration, operating-system driver, design software, cards, ribbon, film and any required modules. Read HID's HDP6600 product information for platform specifications or contact ACB with your requirements. If you need finished cards rather than equipment, our photo ID card printing service is another option.
