IDP Smart Bit Ribbon Shredder

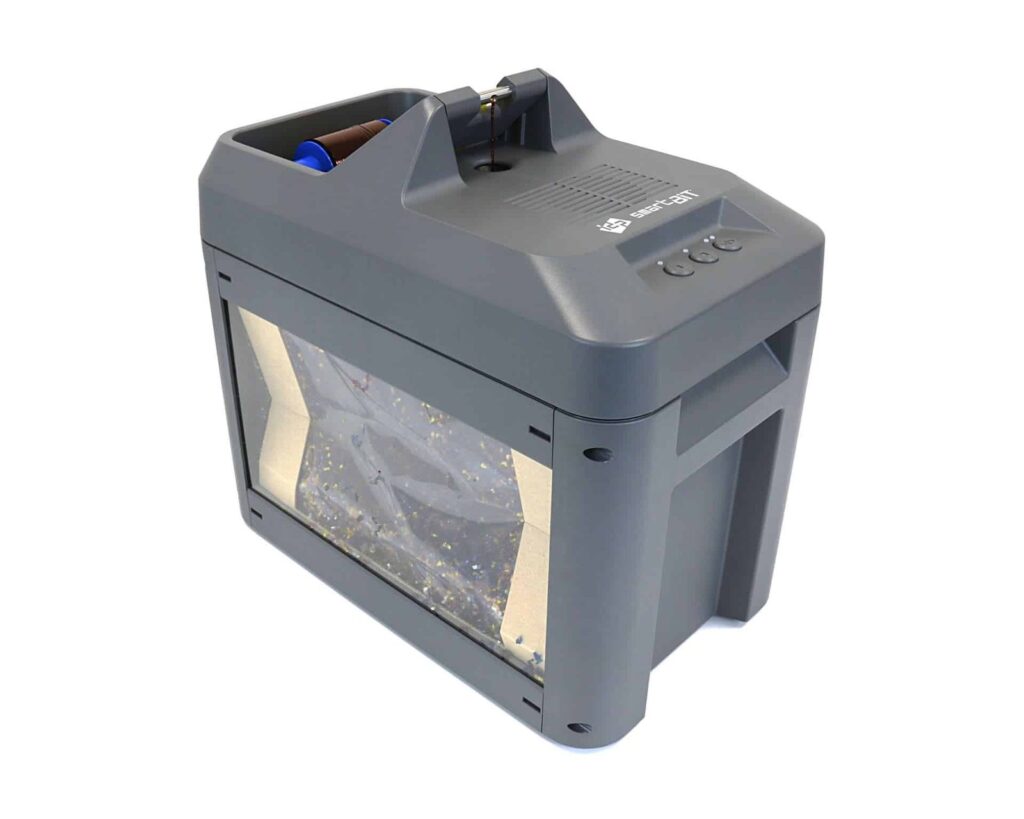

IDP SMART-Bit ribbon shredder

This IDP SMART-Bit ribbon shredder is a used-ribbon shredder for supported dye-sublimation, resin and wax ribbon formats, subject to the supplied model specification. Check the supplied reference and operating requirements with ACB so the equipment matches the workflow you intend to use.

Check ribbon and roll dimensions

The manufacturer catalogue specifies dye-sublimation, resin and wax ribbon, with a ribbon width of 60–90 mm, an installable core width up to 120 mm and maximum roll diameter of 80 mm. Check both the material and physical roll dimensions before loading a used consumable.

Published maximum shredding speed is 20 metres per minute. Twisted Micro-Cut processing produces particles approximately 2.5 mm in size. Normal/fast modes, start/stop and reverse controls support operation, with automatic stopping for a finished ribbon or full waste bag.

Match the unit to your consumable

SMART-Bit ribbon shredders and SMART-Bit Foil units have different intended consumables. Ask ACB to confirm the supplied unit and compatibility with your used ribbon, retransfer film, indent foil or tipping foil.

Plan suitable waste-bag replenishment alongside your organisation's ribbon-disposal procedure. See the IDP ribbon-shredder product information and manufacturer catalogue for the platform and ribbon limits.

IDP SMART-Bit ribbon shredder: buying questions

Which ribbon format should I check?

Compare ribbon width, core width and roll diameter with the supplied machine’s limits. Keep the printer ribbon reference with your enquiry. The current range also includes other SMART-Bit variants, so confirm the exact machine before selecting it for a particular waste stream.

How does it fit a used-ribbon workflow?

Plan a controlled place for collecting and processing used ribbons after printing. Follow the supplied operating instructions for loading, starting, reversing and emptying the bag. Assign responsibility for checking the machine and its collection capacity during regular use.

Does buying a shredder establish data-protection compliance?

The machine is one part of an organisation’s disposal process. Agree the handling, access and disposal procedure for used ribbons under your own policy. A product purchase alone does not establish a legal certification or guarantee the security of the complete workflow.

For help choosing the IDP SMART-Bit ribbon shredder, contact ACB with the exact system or ribbon details. Keep the confirmed configuration and complete ordering reference with your equipment records.

Before placing an organisational order, compare the proposed equipment with the task it will perform. Retain the confirmed model, supplied components and consumable references together, so later purchasing and support enquiries use the same agreed specification.
