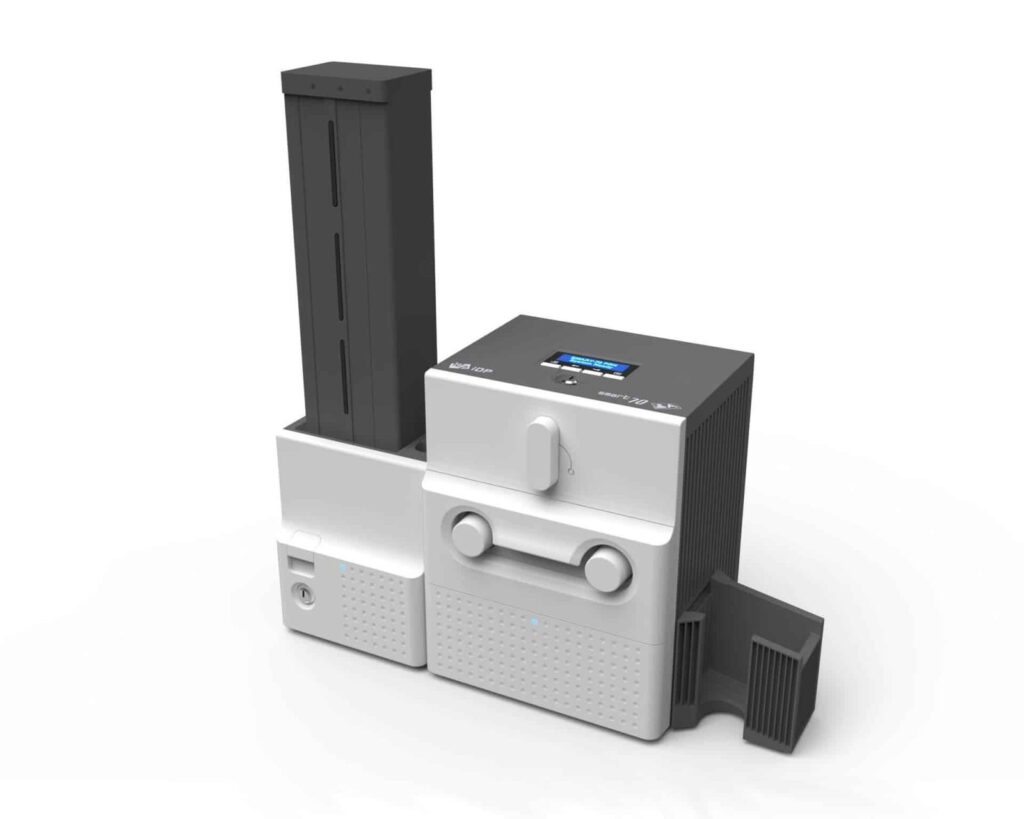

IDP Smart 70 ID Card Printer (Starter System)

IDP Smart 70 starter system

The IDP Smart 70 starter system is a modular base for organisations producing batches of single-sided cards. It suits staff, student and membership-card programmes that need automatic feeding and a production workflow that can be specified around the job.

Start with the card design and daily workload

First, decide what needs to appear on the card and how many cards you issue in one session. The Smart 70 platform separates printing, input, output, flipping and lamination. Duplex printing or lamination requires the corresponding hardware, so plan those functions before ordering.

The printer uses direct-to-card dye-sublimation or resin transfer at 300 × 300 dpi. USB and Ethernet support desktop or network installation. Check current driver support and the design-software licence with your IT team.

ACB's listed starter package

• Smart 70 starter printing system
• One colour ribbon with a nominal 500-print rating
• 500 blank cards
• IDP card-design software
• Cleaning kit

Confirm the exact module layout, software edition, card stock and consumable references with ACB. The platform's available options do not establish that every module or encoder is included in this starter package.

Smart 70 starter buying questions

Does it print 1,000 full-colour cards per hour?

The 1,000-card/hour figure is a monochrome rating. IDP lists 225 cards per hour for a single-printer YMCKO colour mode. Allow for artwork processing, optional encoding, loading and collecting cards when planning actual output.

Can I add automatic reverse printing later?

The platform is modular, but you need the correct compatible hardware and configuration for any added function. Compare ACB's Smart 70 full system, whose listed package includes duplex and lamination hardware, when those functions are already part of the plan.

How much card capacity should I specify?

The platform supports an input hopper of up to 500 cards. Output modules and their capacities vary by setup. Confirm the supplied input, output and reject handling for your stock thickness and job, and allow room to load and collect cards.

Which replacement ribbons does it use?

IDP lists Smart 70 references including 659111 YMCKO, 659113 YMCKOK and 659115 black resin. Confirm the exact reference for your mode when reviewing our IDP printer supplies. A Smart 31/51 ribbon should not be assumed to fit this platform.

Will my existing access-control cards work?

Check the approved card surface, size and thickness, plus the technology required by your reader. Encoding depends on the correct module and software. Review our blank card range with ACB so the stock can be matched to the printing process.

For organisations that prefer to buy finished cards, compare ACB's photo ID card printing service with running a production system in-house. Manufacturer reference: IDP Smart 70 specifications and consumables.
